EGLOBAL Supper Nuc Mini PC Intel UHD Graphics Windows Desktop Computer  are designed for unique, office applications that require compact size, durability, high reliability, and universal performance. These characteristics make these Fan Small PC and Mini Desktop PC ideal for applications like manufacturing, industrial automation, medical, semiconductor, food processing, machine control, and other scenarios in which desktops and notebooks are not feasible, yet high processing performance is needed.


Main advantages of Supper Nuc Mini PC Intel UHD Graphics Windows Desktop Computer :

1. Small size: all EGLOBAL Supper Nuc Mini PC Intel UHD Graphics Windows Desktop Computer  smaller than A4 paper, some of them only 3.5 inch size, just like the HDD sized using it traditional fat computers. Most of those Supper Nuc Mini PC Intel UHD Graphics Windows Desktop Computer  can be mounted to the backside of monitor, and takes almost no space of your desk, make your desk more clear and smart.
2. Durability: all those EGLOBAL Supper Nuc Mini PC Intel UHD Graphics Windows Desktop Computer  are highly intergrated, fan design makes it runs silent and no need extra maintenance like normal fat computers. And most of them using aluminium alloy computer case, very durable.
3. Low power: all the EGLOBAL Supper Nuc Mini PC Intel UHD Graphics Windows Desktop Computer  using 12V power supply, most of them power consumption from 15W to 30W, compare to 150W traditional pc's consumption, it helps saving more than 80% energy.
4. Universal performance: EGLOBAL Supper Nuc Mini PC Intel UHD Graphics Windows Desktop Computer compatible with almost all popular operating systems, such as Windows, Linux. You can use it as personal computer at home, or use it as HTPC to built your own home theater center, and also you can use it in offices, training centers, factories, internet cafe and everywhere that require computers.

What can this Supper Nuc Mini PC Intel UHD Graphics Windows Desktop Computer  do?
Office work: Office, skype, yahoo, outlook and all other office requirement support and runs perfect;
Design work: Photoshop, CoreIDRAW, Dreamweaver, IIIustrator, Flash, Indesign and others
Game playing: support most online games and PC games, like Warcraft, Counter-Strike (CS), support 3D games but this is integrated graphic not independent cards, so don't play very high grade 3D games.
Entertainment: support blu ray 1080P and 4k video play, XBMC and others


Specifications of EGLOBAL Supper Nuc Mini PC Intel UHD Graphics Windows Desktop Computer:

Basic Information:

CPU

Onboard Intel Core i3-7167u

TDP

15W

Motherboard

120 x 120mm customized size

BOIS

AMI BIOS, ACPI supported

Chipset

Intel Xeon E3 - 1200 v6/7th Gen Intel Core/DRAM Registers - 5904 - 7th Generation Intel Processor Fami

Memory

 1 x SO-DIMM DDR4 Slot

Support 2GB/4GB/8GB/16GB

DDR4-2133, LPDDR3-1866, DDR3L-1600

OS

Windows 8/Windows 10/Linux

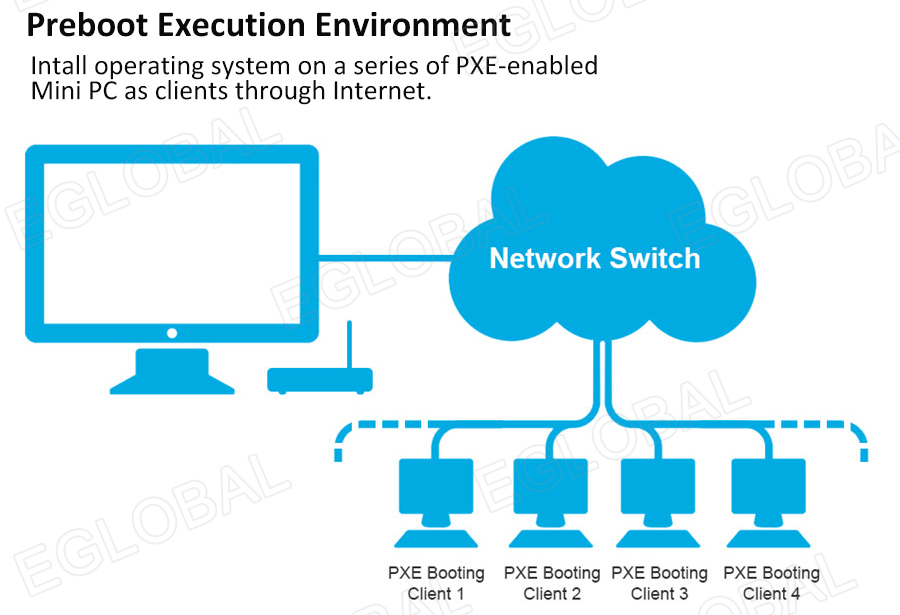

PXE

YES

Audio

Intel High Definition Audio Controller

Network

Onboard Realtek RTL8168/8111/8112 Gigabit Ethernet Controller

10/100Mbps/1000Mbps BaseT LAN

Video

 refer to CPU

Input/output port

Switch

1 x Power On/Off Switch

Power

1 x 12V DC In

LED

2 x LED

USB

2 x USB2.0, 4 x USB3.0

Display

1 x VGA, 1 x HDMI

LAN

1 x RJ45 Giga LAN

Audio

1 x MIC, 1 x SPK

Others

1 x Kensington Lock hole

Storage

MSATA

1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s

SATA

1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s(no space to install)

Wi-Fi

Module

1 x mini PCIE-half port for Wi-Fi module

Antenna

2 x inner RF cables and 2 x external antennas

Power and Working Environment

Input

DC100-240V AC/50-60Hz

Output

DC +12V~+19V, recommend 12V/5A

Operating Temperature

0/+70 Centigrade

Storage Temperature

-20/+85 Centigrade

Relative Humidity

0%~90% (non-condensing)

Product Dimension & Details

Size

129*129*42.5mm

Weight

Net 0.65kg, Gross 1.5kg

Shell

Black color aluminum alloy(any customized color for bulk order)

Cooling Mode

With a copper cooling fan

Functions

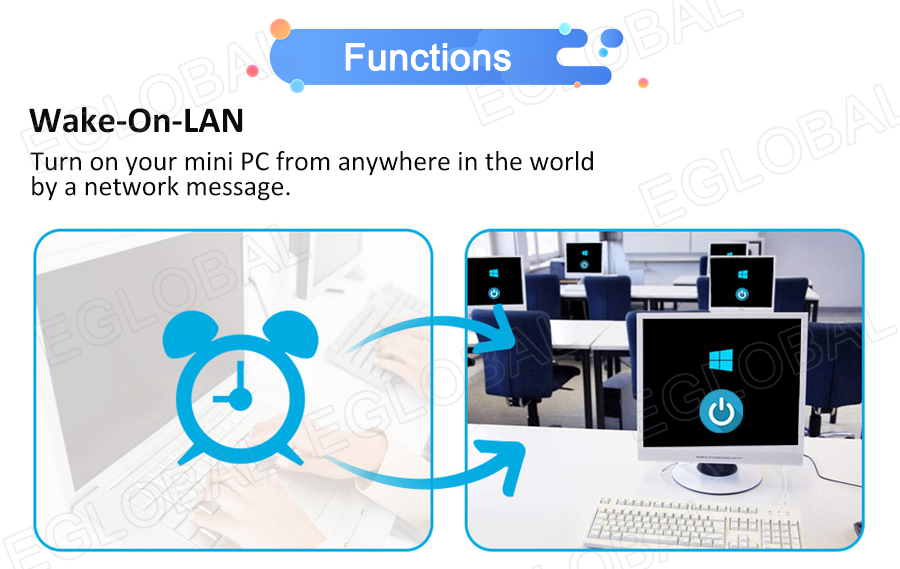

AWAL, WOL, RTC, Kensington Lock

Package Content

Standard

1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag, 1xVESA mount

Optional

Wi-Fi antennas, 1xHDMI cable, 1xUser Manual
