EGLOBAL Fanless Mini PC Barebone Computer TV Box HTPC are designed for unique, office, home and training applications. Their compact size, durability, high reliability, universal performance and low power requirement help users getting much better computing experience.

Main advantages of Fanless Mini PC Barebone Computer TV Box HTPC:

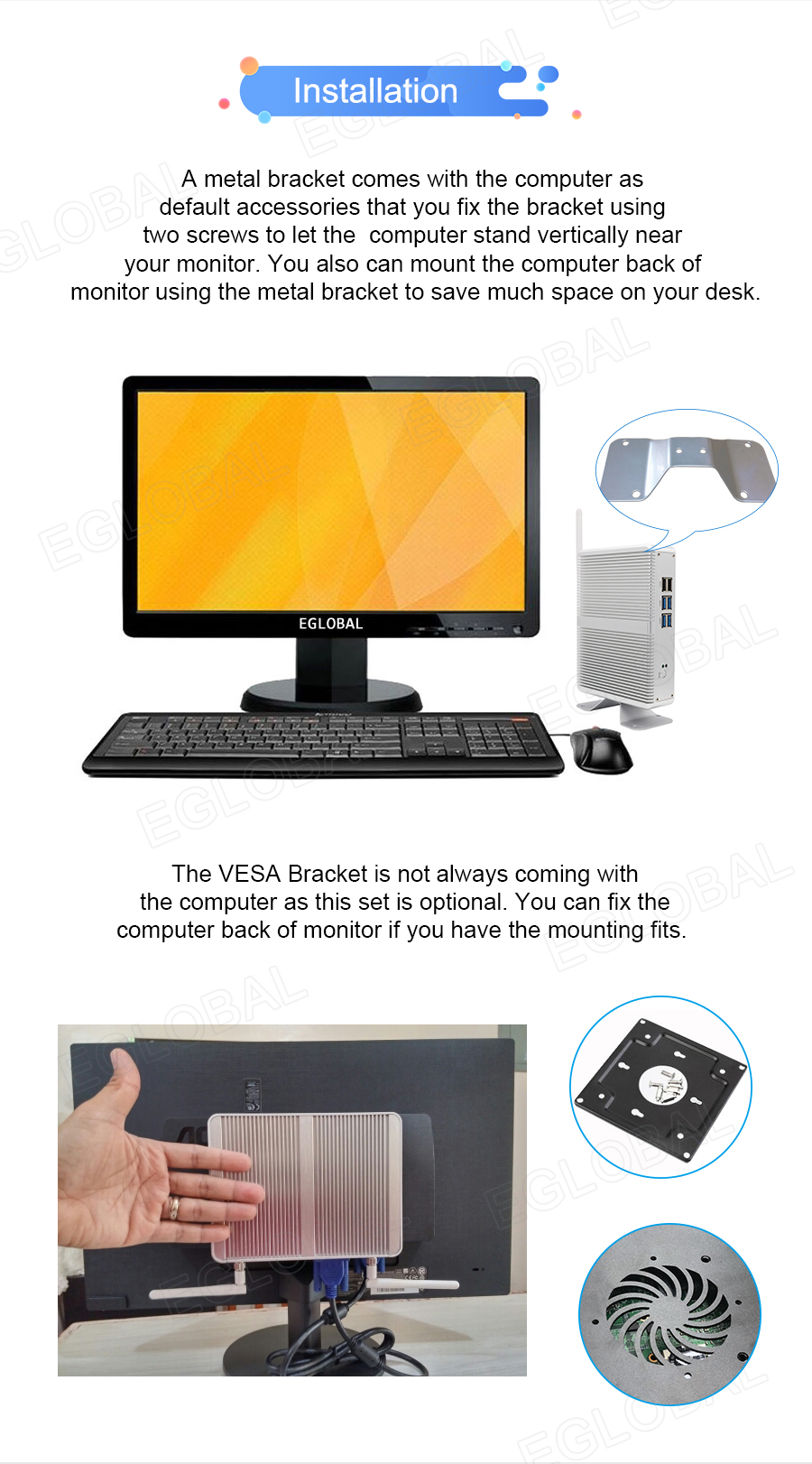

1. Small size: all EGLOBAL Fanless Mini PC Barebone Computer TV Box HTPC smaller than A4 paper, some of them only 3.5 inch size, just like the HDD sized using it traditional fat computers. Most of those small sized mini pc can be mounted to the backside of monitor, and takes almost no space of your desk, make your desk more clear and smart.

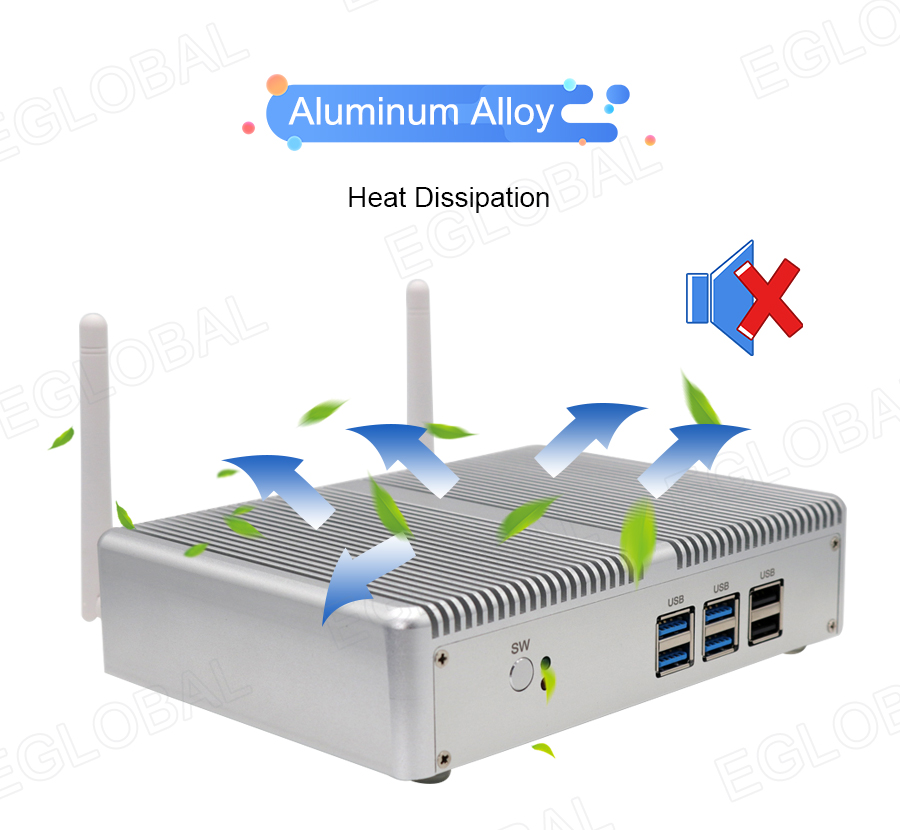

2. Durability: all those Fanless Mini PC Barebone Computer TV Box HTPC are highly integrated, fanless design makes it runs silent and no need extra maintenance like normal fat computers. And most of them using aluminium alloy computer case, very durable.
3. Low power: all the EGLOBAL Fanless Mini PC Barebone Computer TV Box HTPC using 12V power supply, most of them power consumption from 15W to 30W, compare to 150W traditional pc's consumption, it helps saving more than 80% energy.
4. Universal performance: EGLOBAL Fanless Mini PC Barebone Computer TV Box HTPC compatible with almost all popular operating systems, such as Windows, Linux. You can use it as personal computer at home, or use it as HTPC to built your own home theater center, and also you can use it in offices, training centers, factories, internet cafe and everywhere that require computers.

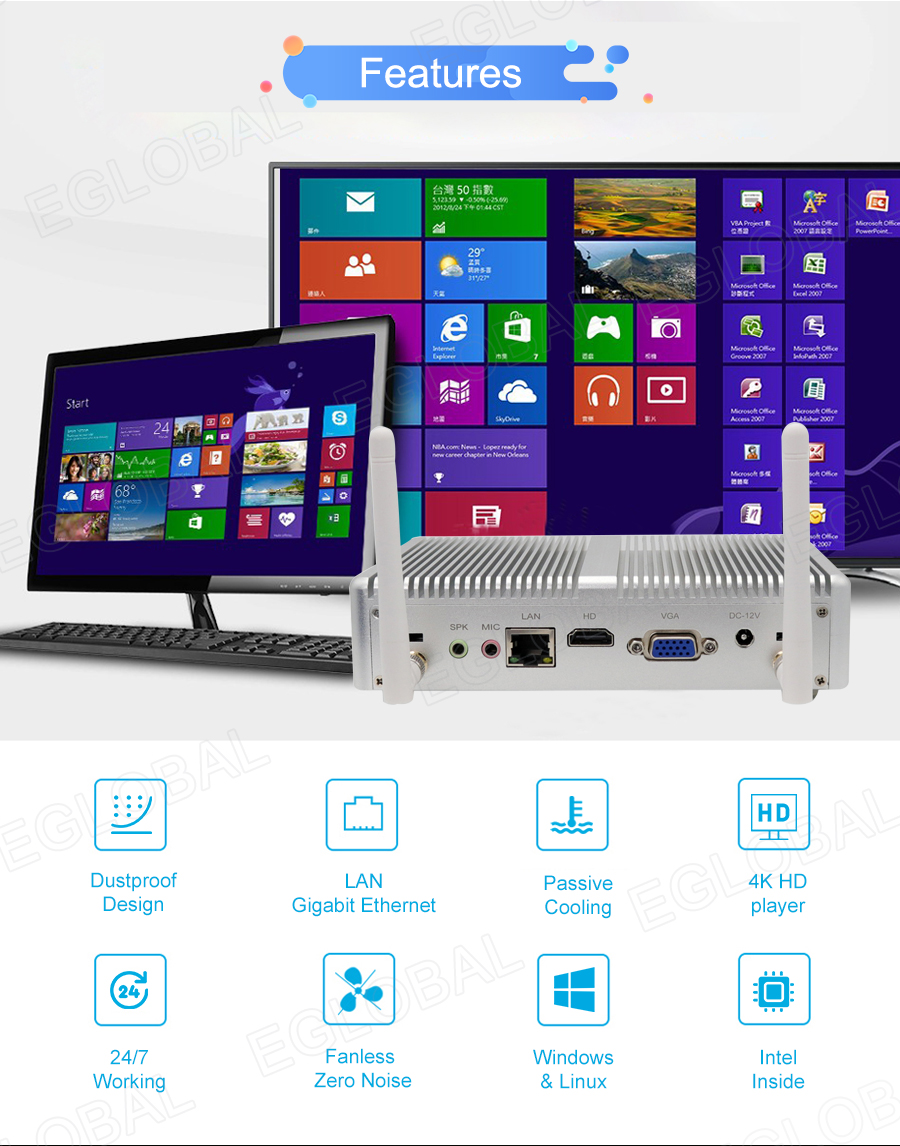

What can this Fanless Mini PC Barebone Computer TV Box HTPC do?
Office work: Office, skype, yahoo, outlook and all other office requirement support and runs perfect;
Design work: Photoshop, CoreIDRAW, Dreamweaver, IIIustrator, Flash, Indesign and others
Game playing: support most online games and PC games, like Warcraft, Counter-Strike (CS), support 3D games but this is integrated graphic not independent cards, so don't play very high grade 3D games.
Entertainment: support blu ray 1080P and 4k video play, XBMC and others


Fanless Mini PC Barebone Computer TV Box HTPC Specifications:

Basic Information:

CPU

OnboarIntel Core i5-7200U 2.5GHz Max 3.1GHz Dual Core Four Thread

TDP

15W

Motherboard Size

120 x 120mm customized size

BOIS

AMI BIOS, ACPI supported

Chipset

Intel Kaby Lake

Memory

1 x SO-DIMM DDR3L Slot

Support 2GB/4GB/8GB

DDR3L-1600, DD3L-1333, LPDDR3-1600, LPDDR3-1333

OS

Windows 7/Windows 8/Windows 10/Linux

Audio

ALC662 sound chip, 6-channel

Intel Panther Point HDA

Network

Onboard Realtek RTL8168/8111/8112 PCI-E Gigabit Ethernet NIC

10/100Mbps/1000Mbps BaseT LAN

Video

Intel HD Graphics 5500

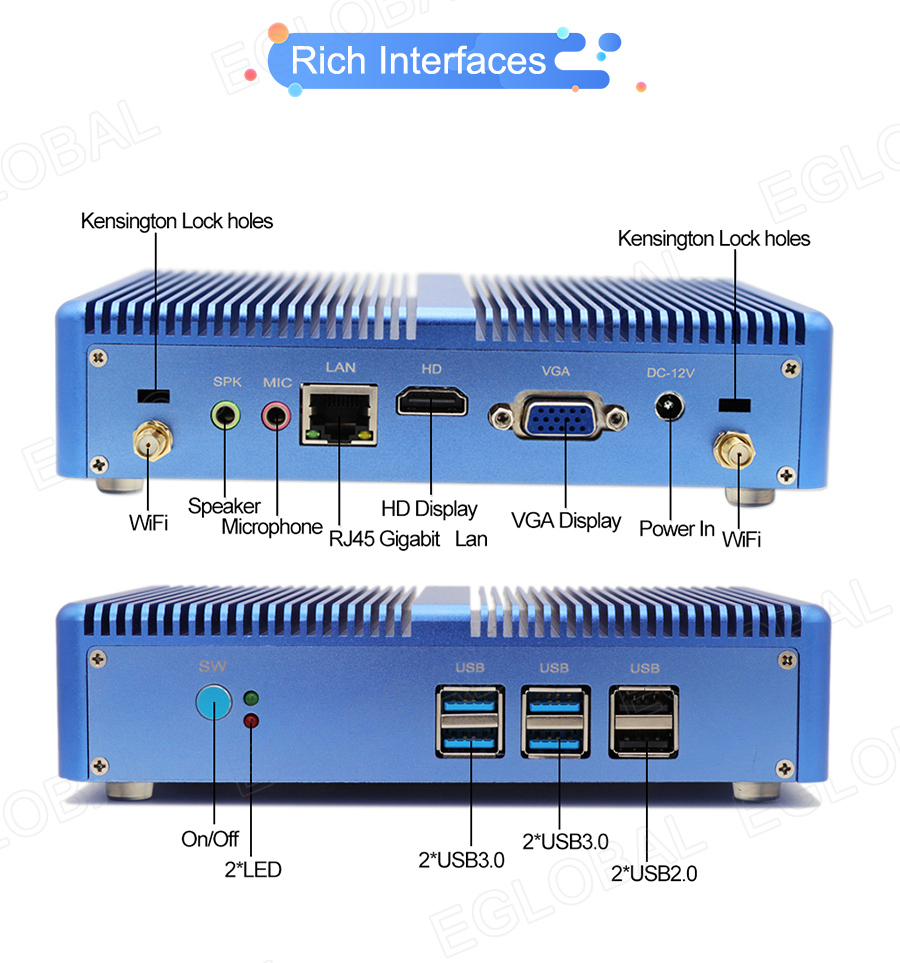

Input/output port

Switch

1 x Power On/Off Switch

Power

1 x 12V DC In

LED

2 x LED

USB

2 x USB2.0, 4 x USB3.0

Display

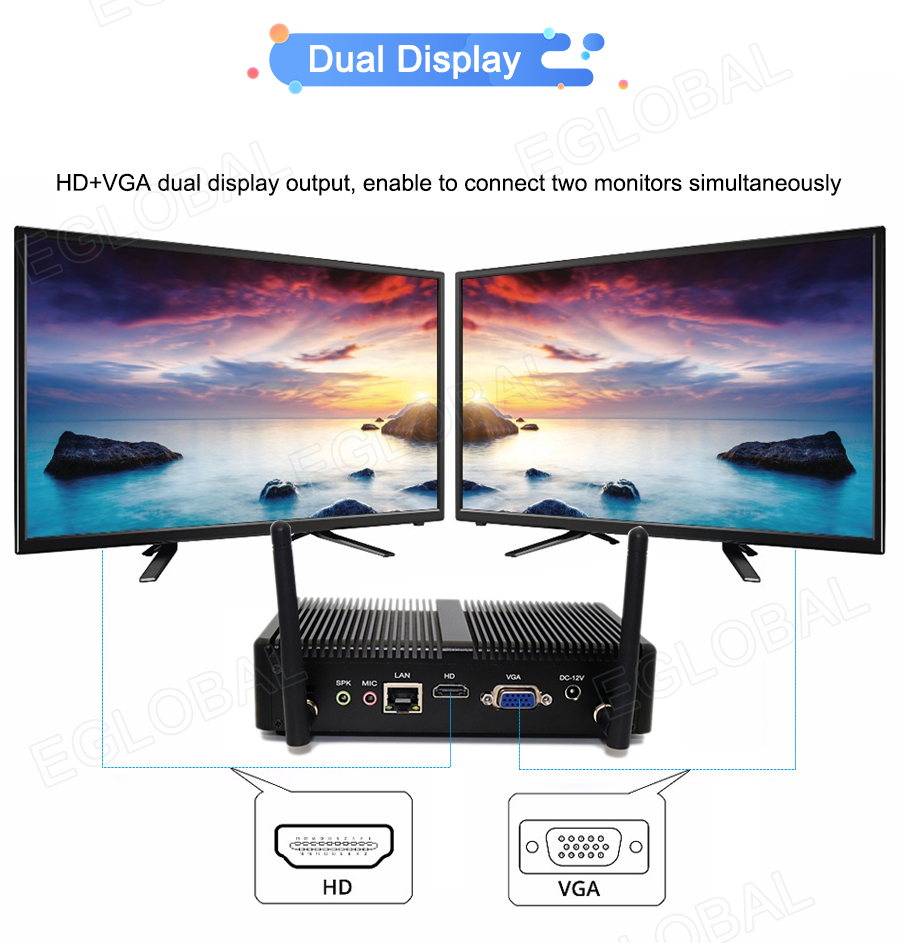

1 x VGA, 1 x HDMI

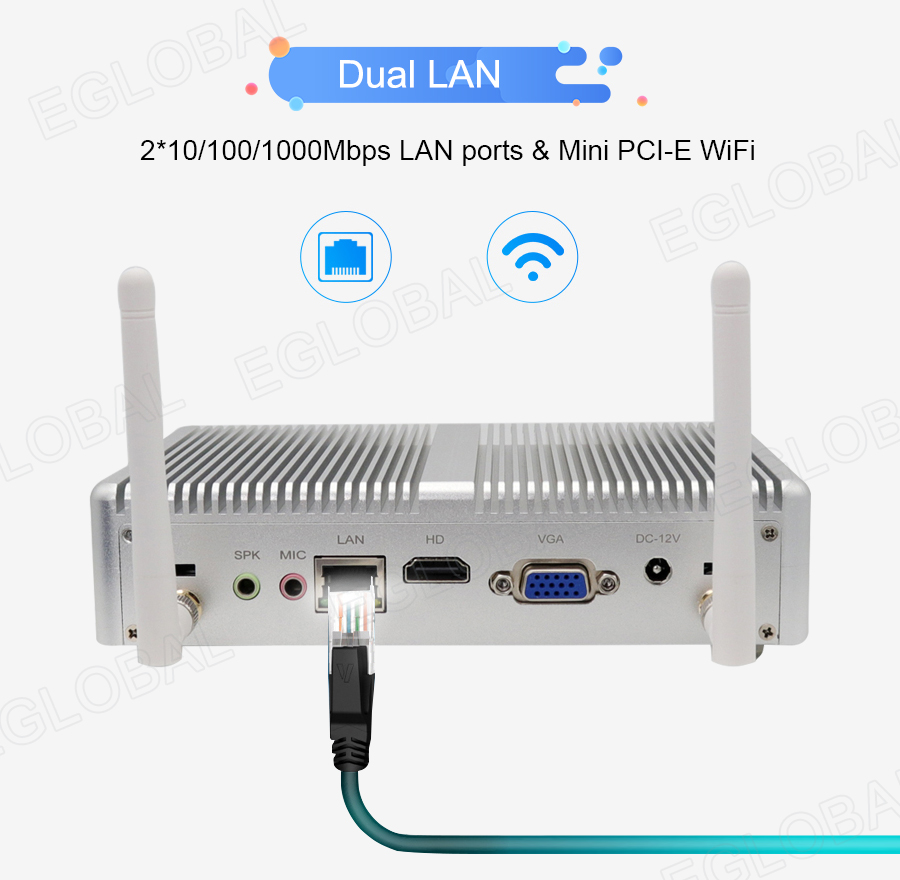

LAN

1 x RJ45 Giga LAN

Audio

1 x MIC, 1 x SPK

Others

2 x Kensington Lock holes

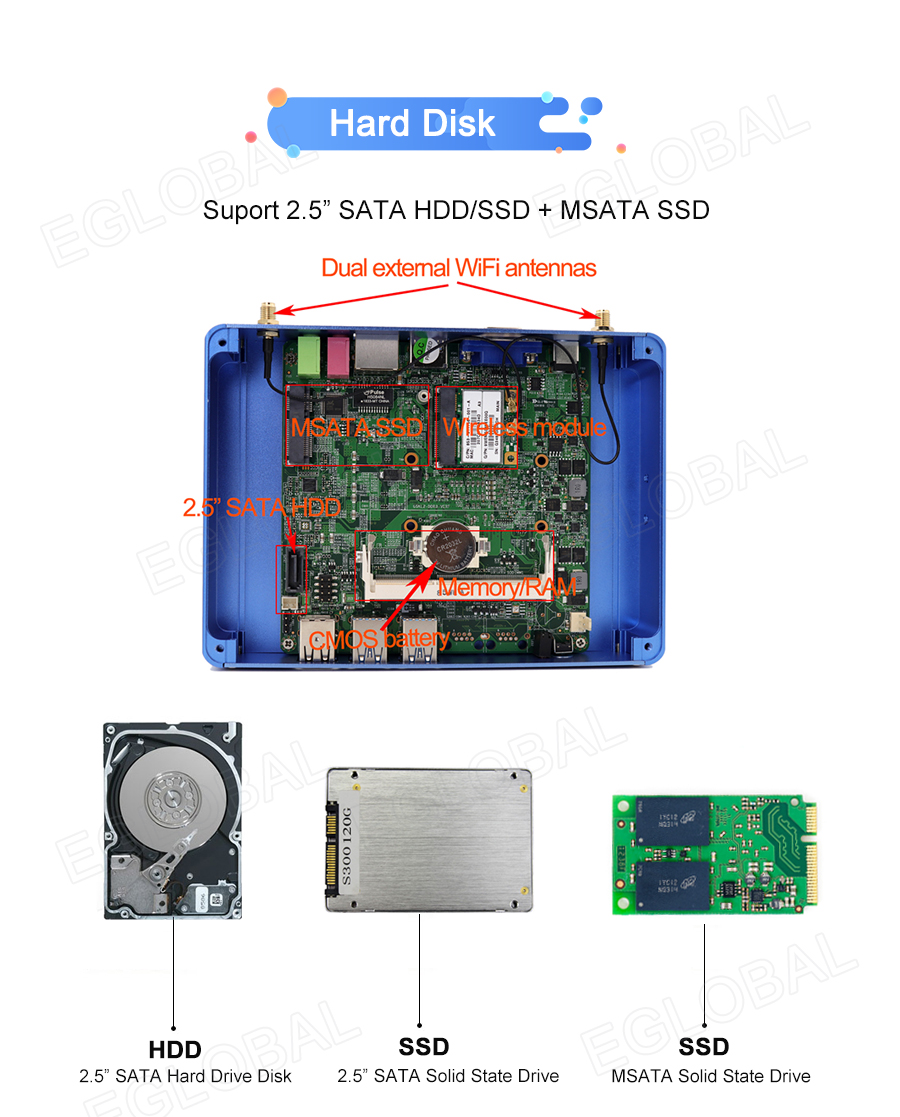

Storage

MSATA

1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s

SATA

1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s

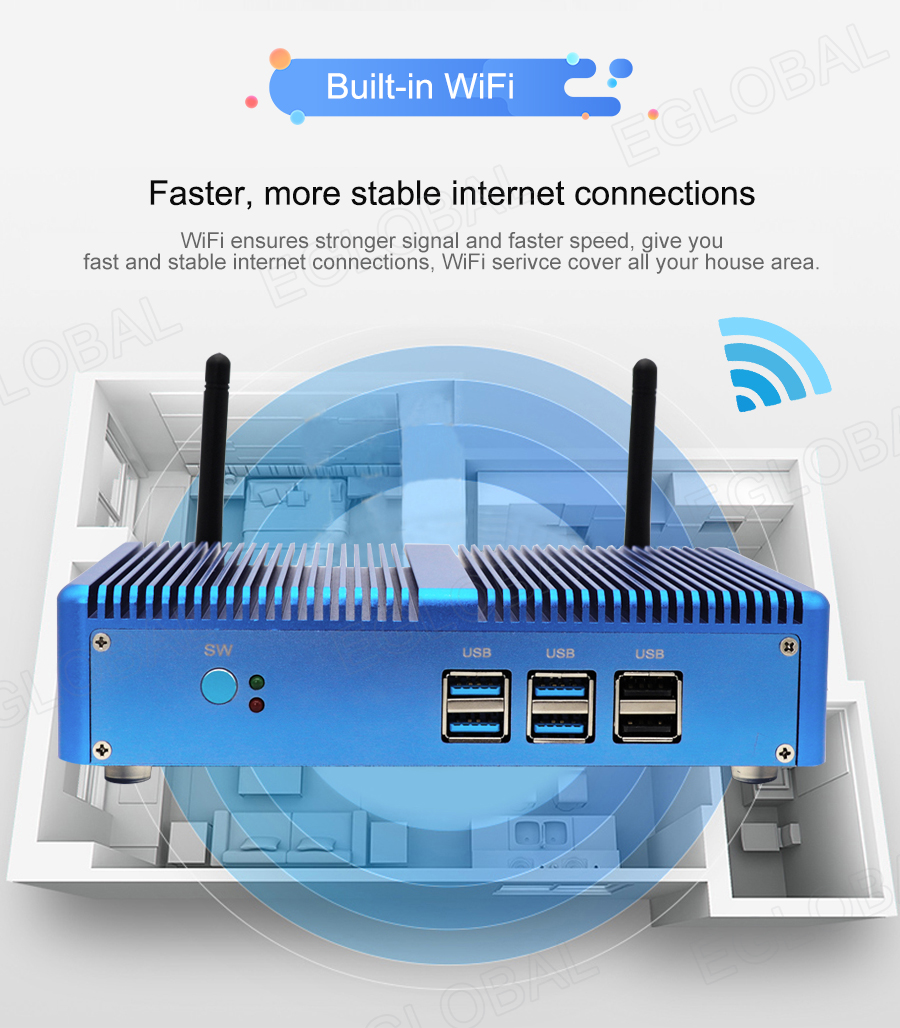

Wi-Fi

Module

1 x mini PCIE-half port for Wi-Fi module

Antenna

2 x inner RF cables and 2 x external antennas

Power and Working Environment

Input

DC100-240V AC/50-60Hz

Output

DC +12V~+19V, recommend 12V/5A

Operating Temperature

0/+70 Centigrade

Storage Temperature

-20/+85 Centigrade

Relative Humidity

0%~90% (non-condensing)

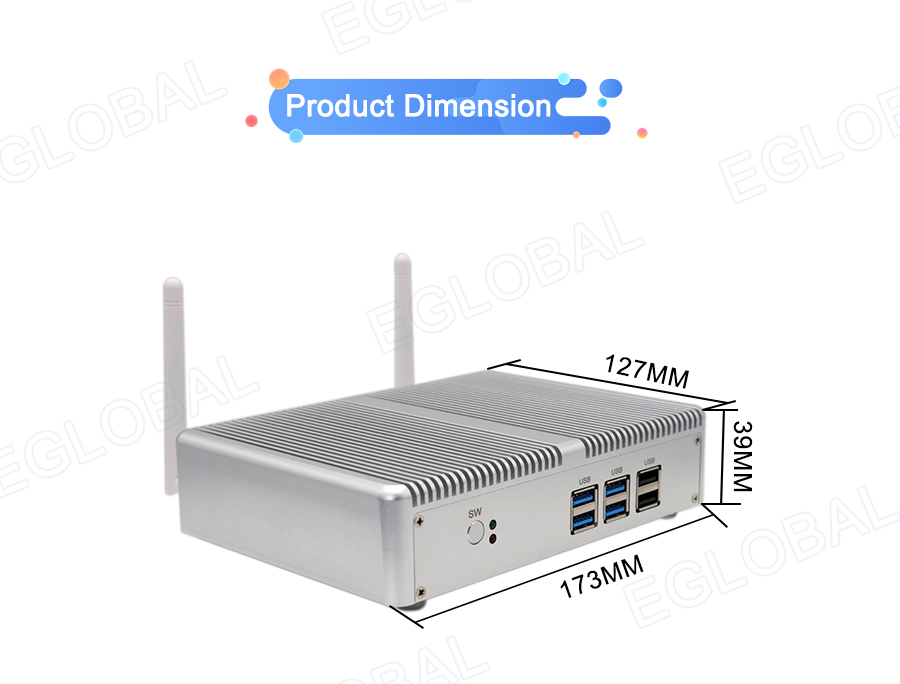

Product Dimension & Details

Size

173*127*39mm

Weight

Net 0.8kg, Gross 1.2kg

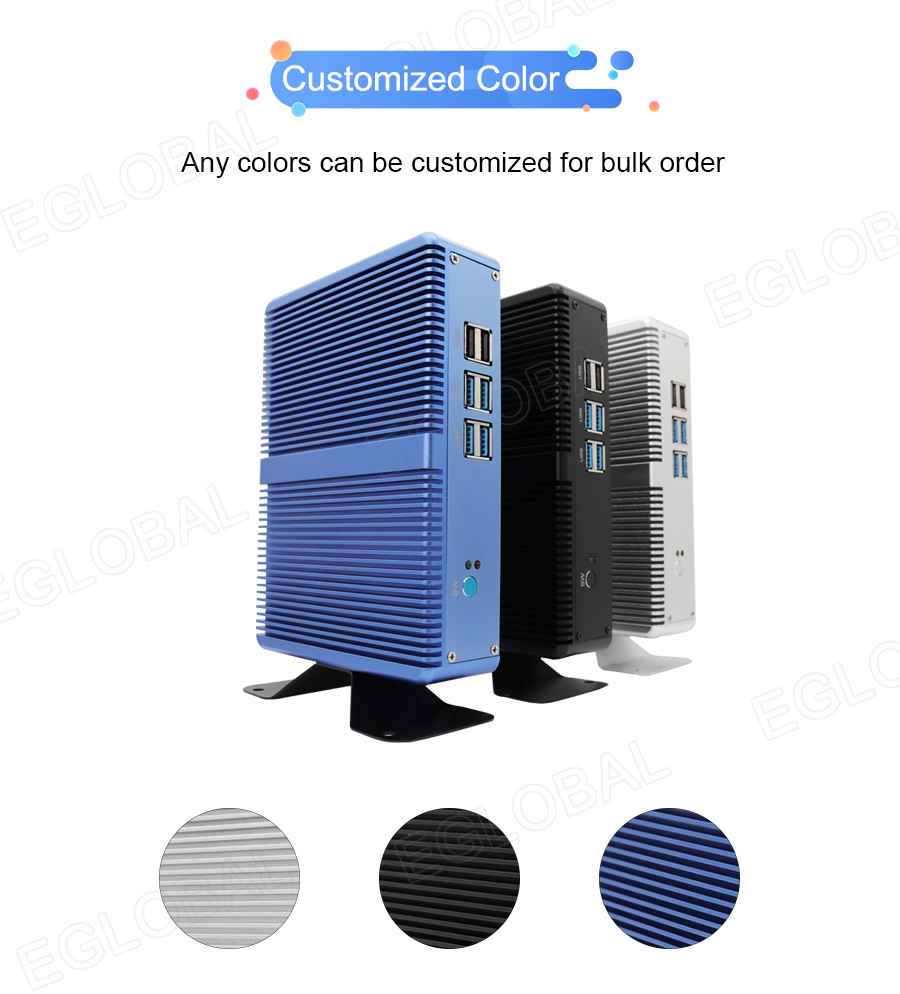

Shell

Black/Sliver/Bluecolor aluminum alloy(any customized color for bulk order)

Cooling Mode

Fanless

Functions

Calls on function automatically, Wake-On-LAN, Kensington Lock

Package Content

Standard

1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag, 1xWarranty Card

Optional

Wi-Fi antennas, 1xHDMI cable, 1xUser Manual, 1xLong Screws Bag

Write a review

Note: HTML is not translated!
    Bad           Good

EGLOBAL Nuc Single Lan Fanless Mini PC Windows 10 Linux Barebone Computer Intel 7200U DDR3L VGA HDMI TV Box HTPC

  • Brand: EGLOBAL
  • Product Code: M3-7200U
  • Availability: 200
  • $255.30
  • $245.67

  • Ex Tax: $245.67
