EGLOBAL New Desktop Mini PC Intel Pentium Windows Linux Nettop Minipc are designed for unique, office applications that require compact size, durability, high reliability, and universal performance. These characteristics make these Fan Small PC and Mini Desktop PC ideal for applications like manufacturing, industrial automation, medical, semiconductor, food processing, machine control, and other scenarios in which desktops and notebooks are not feasible, yet high processing performance is needed.


Main advantages of New Desktop Mini PC Intel Pentium Windows Linux Nettop Minipc:

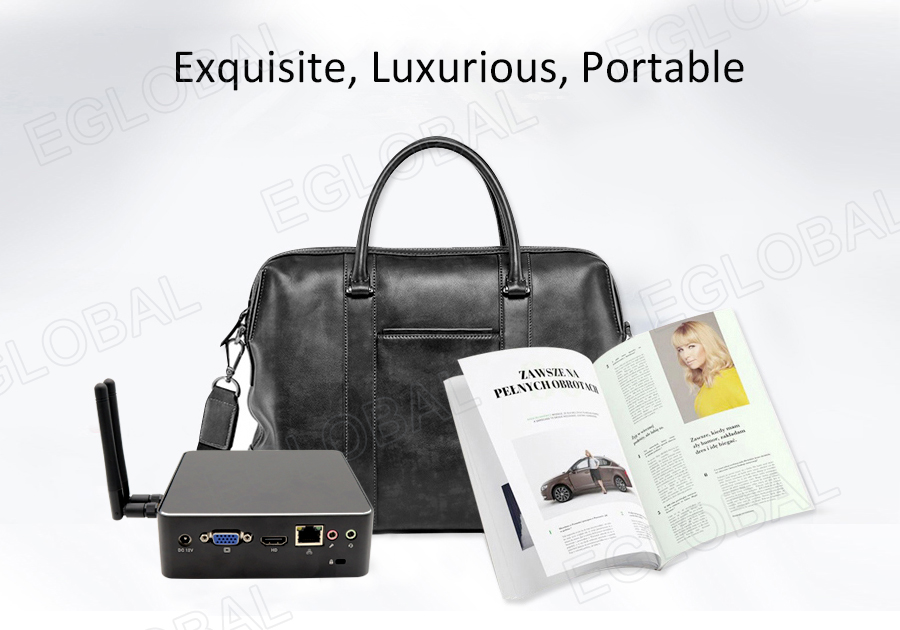

1. Small size: all EGLOBAL New Desktop Mini PC Intel Pentium Windows Linux Nettop Minipc smaller than A4 paper, some of them only 3.5 inch size, just like the HDD sized using it traditional fat computers. Most of those small sized mini pc can be mounted to the backside of monitor, and takes almost no space of your desk, make your desk more clear and smart.
2. Durability: all those EGLOBAL
New Desktop Mini PC Intel Pentium Windows Linux Nettop Minipc are highly intergrated, fan design makes it runs silent and no need extra maintenance like normal fat computers. And most of them using aluminium alloy computer case, very durable.
3. Low power: all the EGLOBAL
New Desktop Mini PC Intel Pentium Windows Linux Nettop Minipc using 12V power supply, most of them power consumption from 15W to 30W, compare to 150W traditional pc's consumption, it helps saving more than 80% energy.
4. Universal performance: EGLOBAL
New Desktop Mini PC Intel Pentium Windows Linux Nettop Minipccompatible with almost all popular operating systems, such as Windows, Linux. You can use it as personal computer at home, or use it as HTPC to built your own home theater center, and also you can use it in offices, training centers, factories, internet cafe and everywhere that require computers.

What can this
New Desktop Mini PC Intel Pentium Windows Linux Nettop Minipc do?
Office work: Office, skype, yahoo, outlook and all other office requirement support and runs perfect;
Design work: Photoshop, CoreIDRAW, Dreamweaver, IIIustrator, Flash, Indesign and others
Game playing: support most online games and PC games, like Warcraft, Counter-Strike (CS), support 3D games but this is integrated graphic not independent cards, so don't play very high grade 3D games.

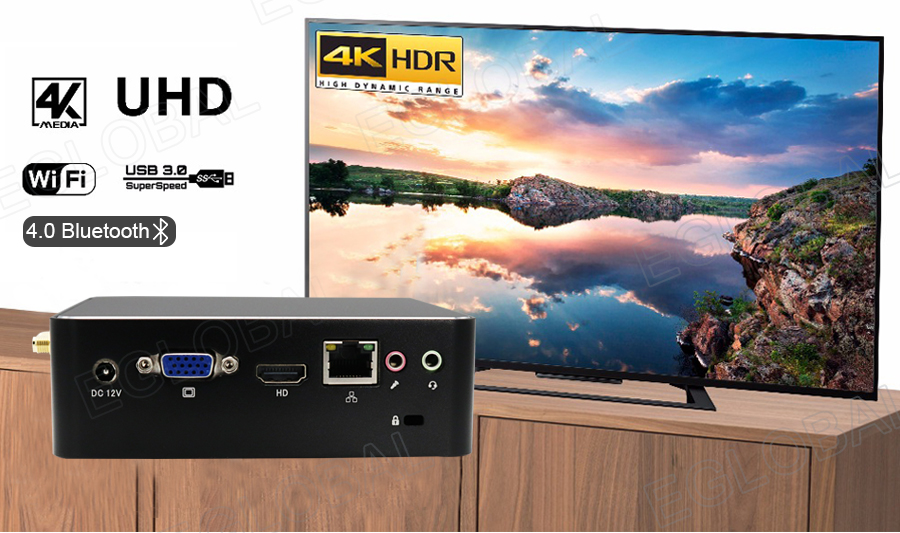

Entertainment: support blu ray 1080P and 4k video play, XBMC and others

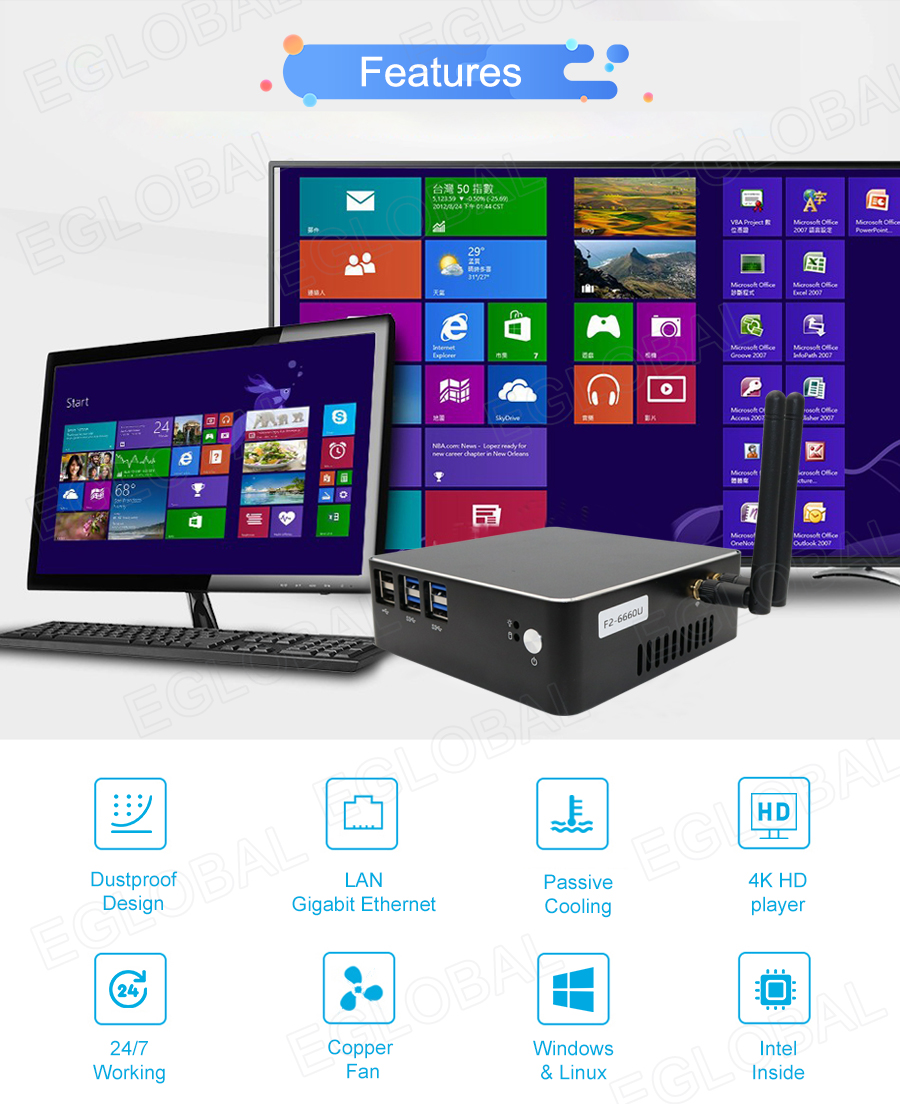

Features of New Desktop Mini PC Intel Pentium Windows Linux Nettop Minipc:

  1. Fan system with cooling fan
  2. Appropriate product design: Contracted design style, super mini body and good performance, the heat dissipation capability of stable
  3. Strict ME tolerance control: Full experience tooling design and CNC process good gap control in final system assembly process

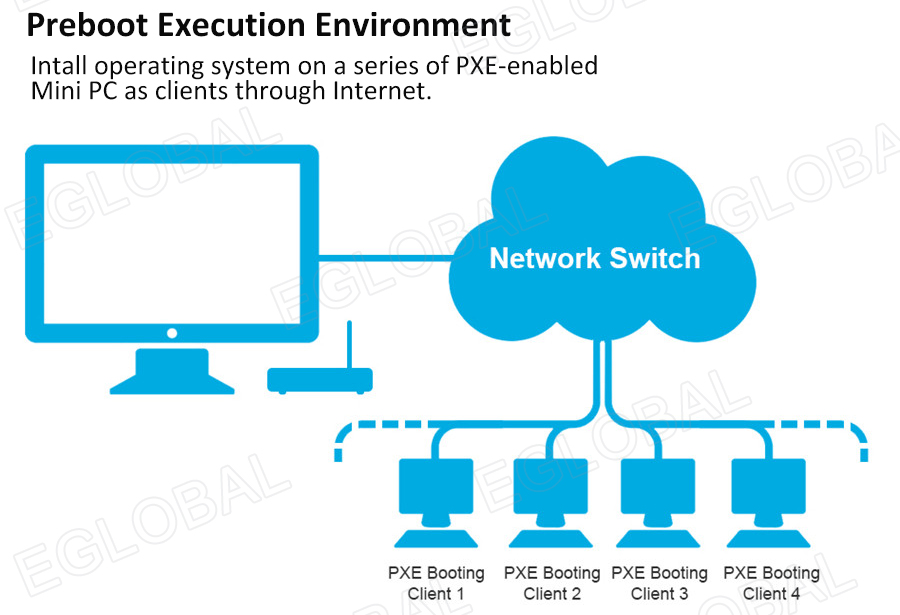

  4. Support PXE, AWAL, RTC function
  5. CE, FCC, ROHS certification


Specifications of New Desktop Mini PC Intel Pentium Windows Linux Nettop Minipc:

Basic Information:

CPU

Onboard Intel Core i5-7267u

TDP

Refer to CPU

Motherboard

120 x 120mm customized size

BOIS

AMI BIOS, ACPI supported

Chipset

Intel PCI Standard Host CPU Bridge - 100 Series Chipset Family/eSPI Controller - 9D48

Memory

1 x SO-DIMM DDR3L Slot

Support 2GB/4GB/8GB

DDR4-2133, LPDDR3-1866, DDR3L-1600

OS

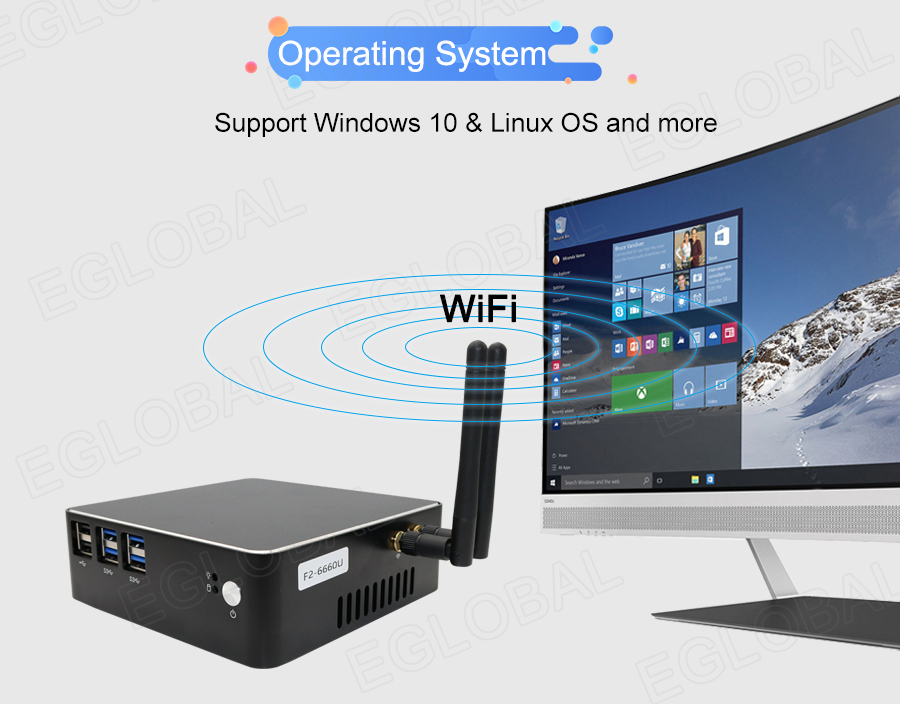

Windows 8/Windows 10/Linux

PXE

YES

Audio

Intel High Definition Audio Controller

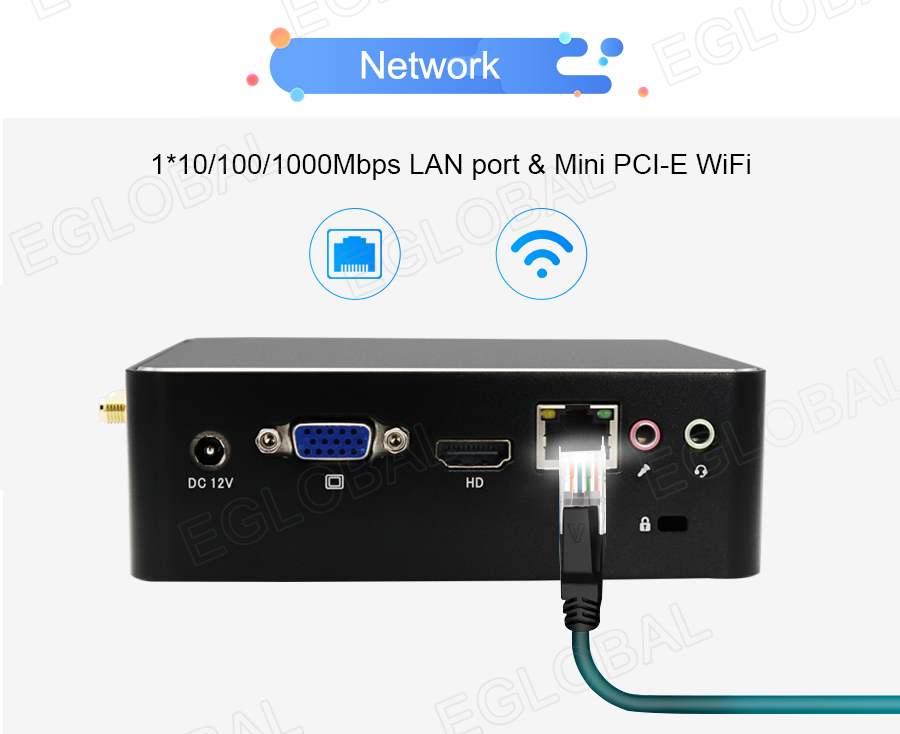

Network

Onboard Realtek RTL8168/8111/8112 Gigabit Ethernet Controller

10/100Mbps/1000Mbps BaseT LAN

Video

 Refer to CPU

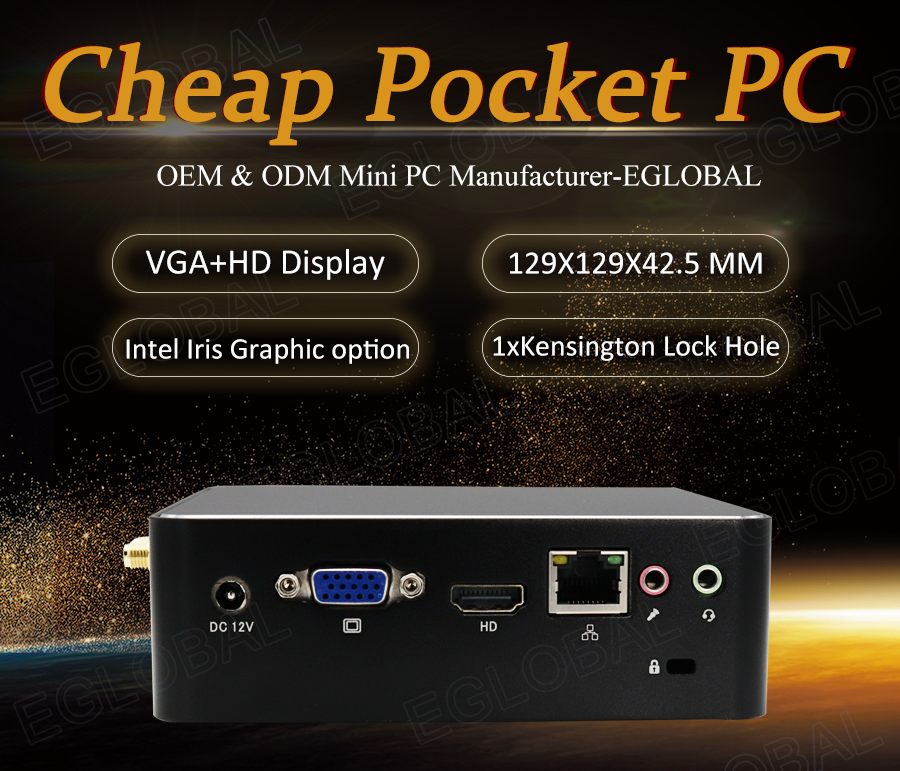

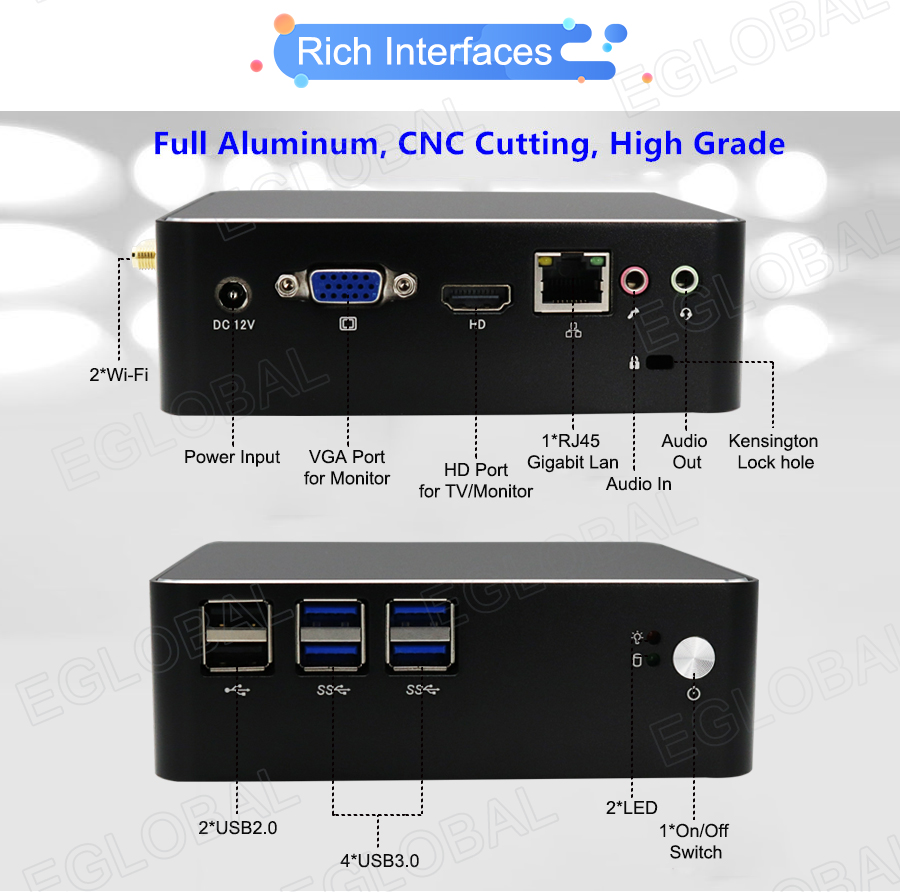

Input/output port

Switch

1 x Power On/Off Switch

Power

1 x 12V DC In

LED

2 x LED

USB

2 x USB2.0, 4 x USB3.0

Display

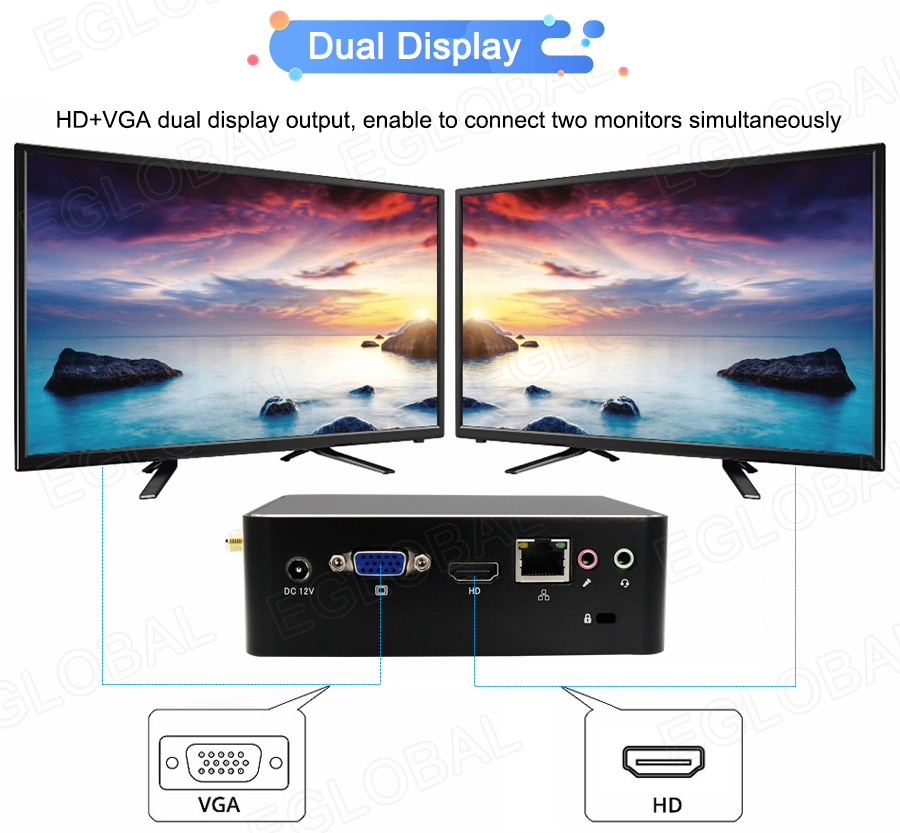

1 x VGA, 1 x HDMI

LAN

1 x RJ45 Giga LAN

Audio

1 x MIC, 1 x SPK

Others

1 x Kensington Lock hole

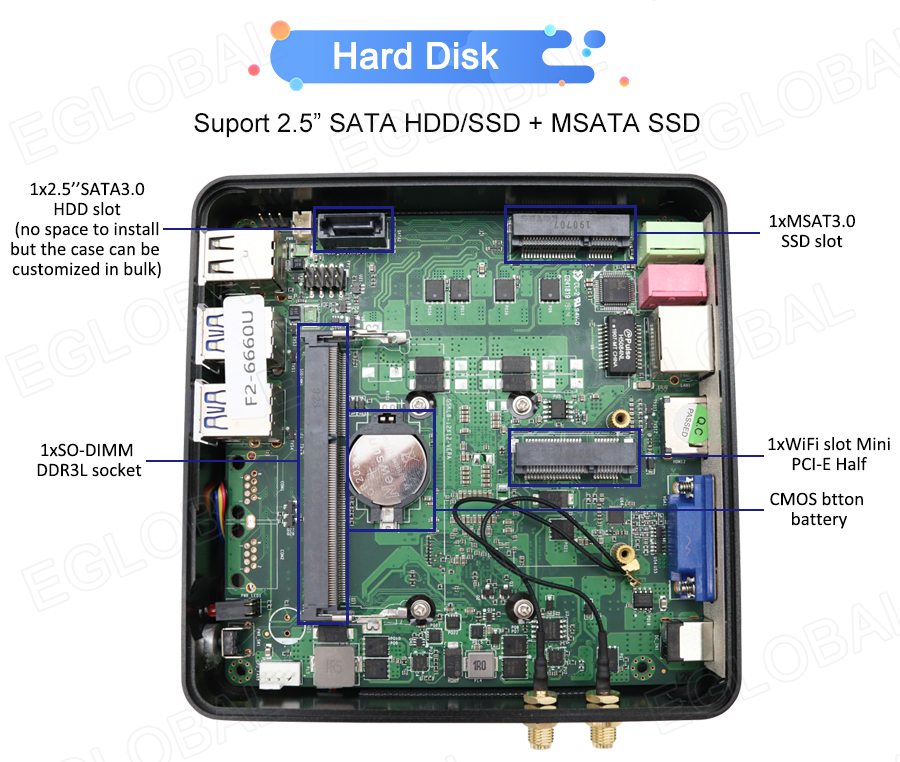

Storage

MSATA

1 x M-SATA3.0 slot for MSATA SSD, support 6Gb/s

SATA

1 x SATA3.0 slot for SATA HDD or SSD, support 6Gb/s(no space to install)

Wi-Fi

Module

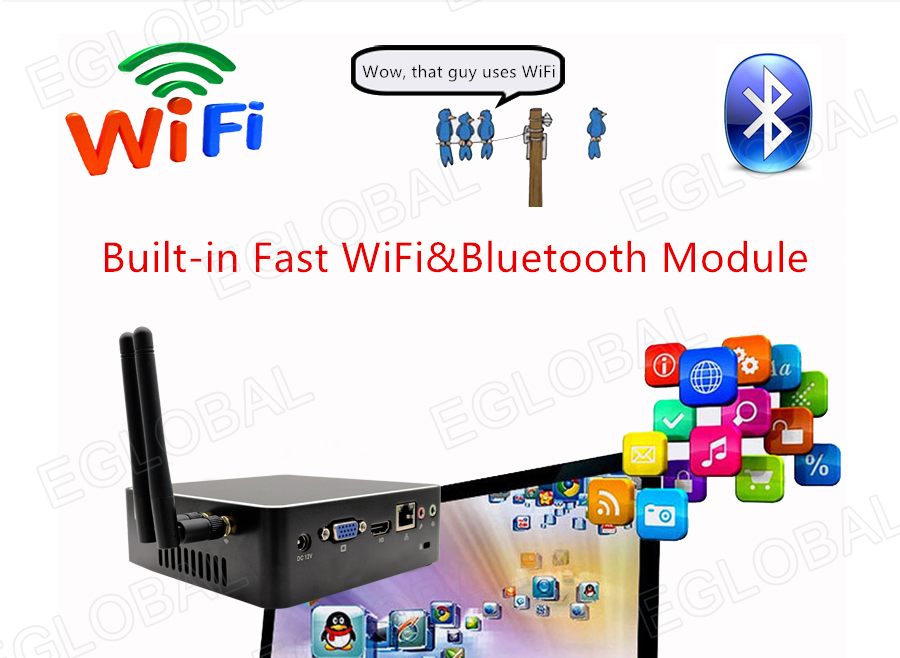

1 x mini PCIE-half port for Wi-Fi module

Antenna

2 x inner RF cables and 2 x external antennas

Power and Working Environment

Input

DC100-240V AC/50-60Hz

Output

DC +12V~+19V, recommend 12V/5A

Operating Temperature

0/+70 Centigrade

Storage Temperature

-20/+85 Centigrade

Relative Humidity

0%~90% (non-condensing)

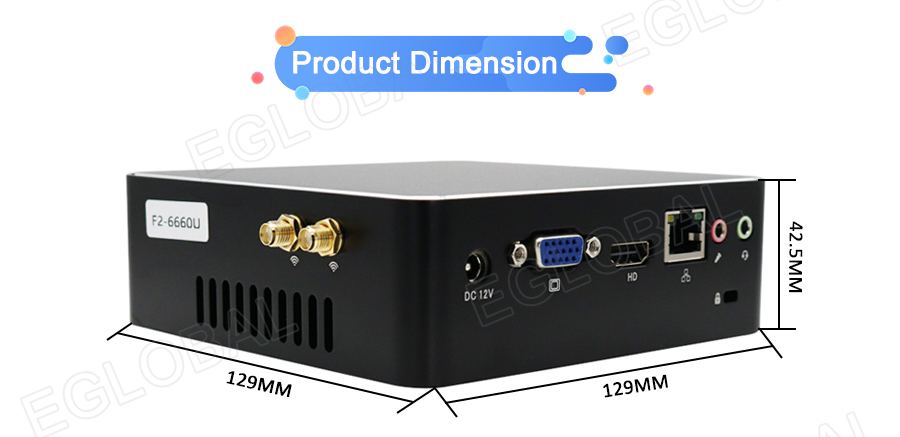

Product Dimension & Details

Size

129*129*42.5mm

Weight

Net 0.65kg, Gross 1.5kg

Shell

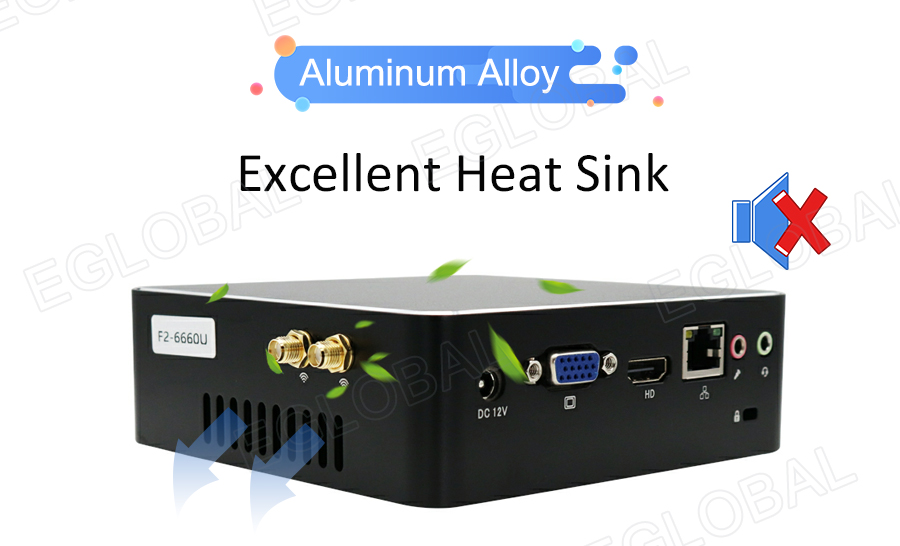

Black color aluminum alloy(any customized color for bulk order)

Cooling Mode

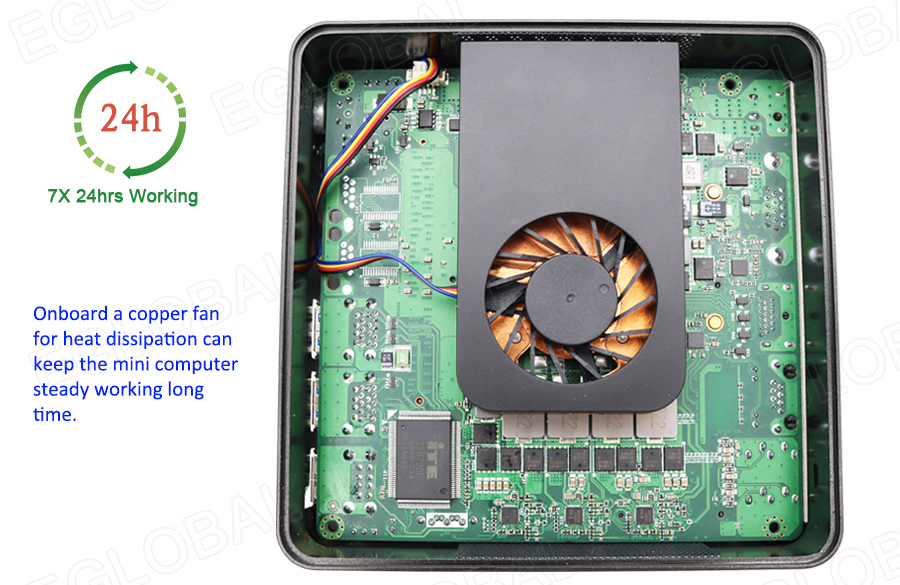

With a copper cooling fan

Functions

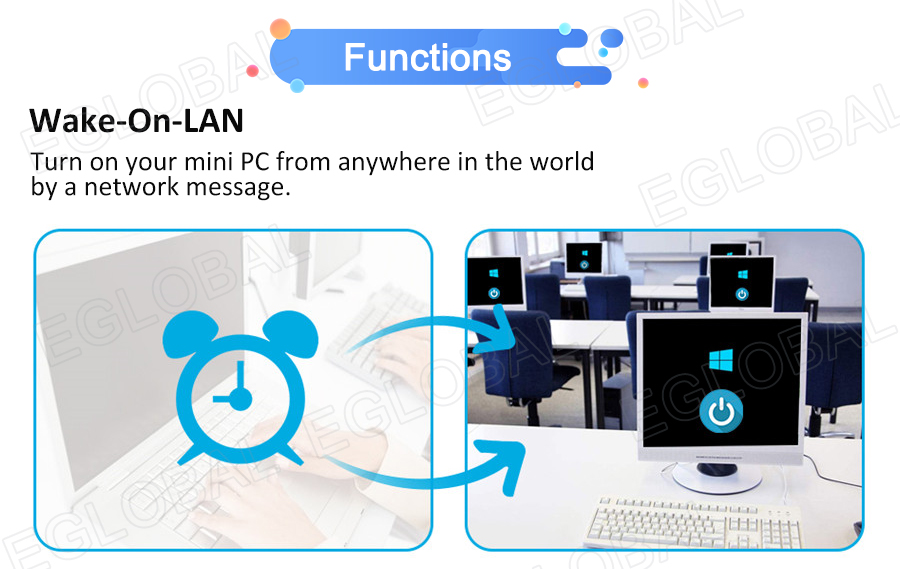

AWAL, WOL, RTC, Kensington Lock

Package Content

Standard

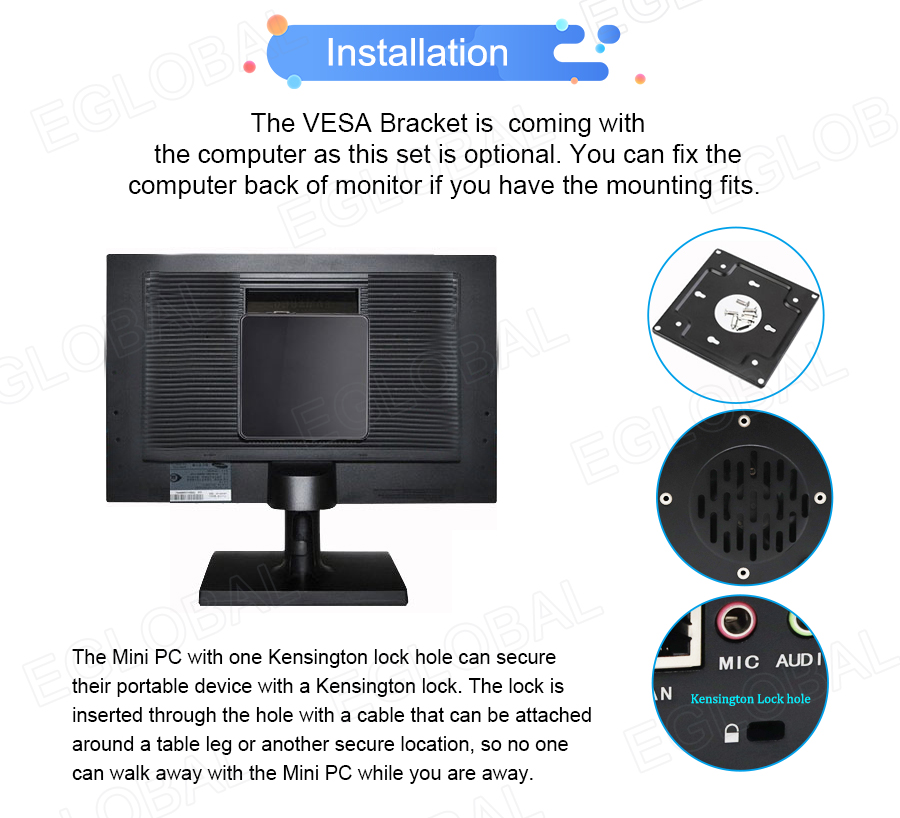

1xMini PC, 1xPower Adapter, 1xPower Cord, 1xScrews Bag, 1xVESA mount

Optional

Wi-Fi antennas, 1xHDMI cable, 1xUser Manual
