- Eglobal Fanless Mini PC Intel Core i5 Micro Computer LPT GPIO LVDS 6 COM 8 USB AC WIFI HD VGA Industrial Mini Computer Product Highlights
*2 Intel i213 Gigabit RJ45 LAN and 2 COM can change to RS232/422/485 from BIOS.
*One embedded SIM card slot for 4G Module.

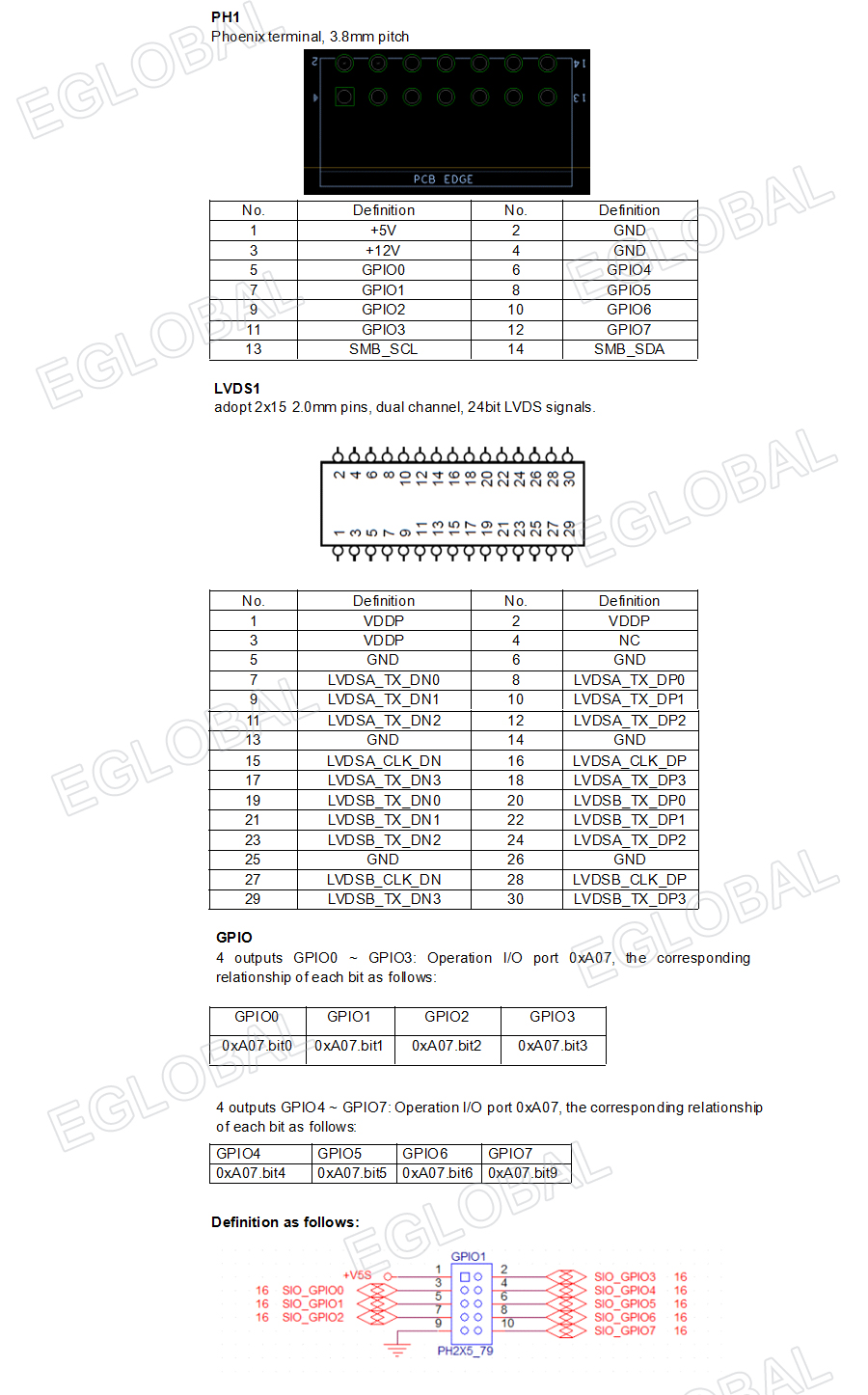

*GPIO, LPT, 6COM, HDMI, VGA, USB, MIC, SPK rich ports.
*Full Aluminum Alloy Black color shell for heat dissipation, Exquisite production craft on outside design.
*Fanless system without cooling fan, fit for industrial grade field, work as long as 24 hours.

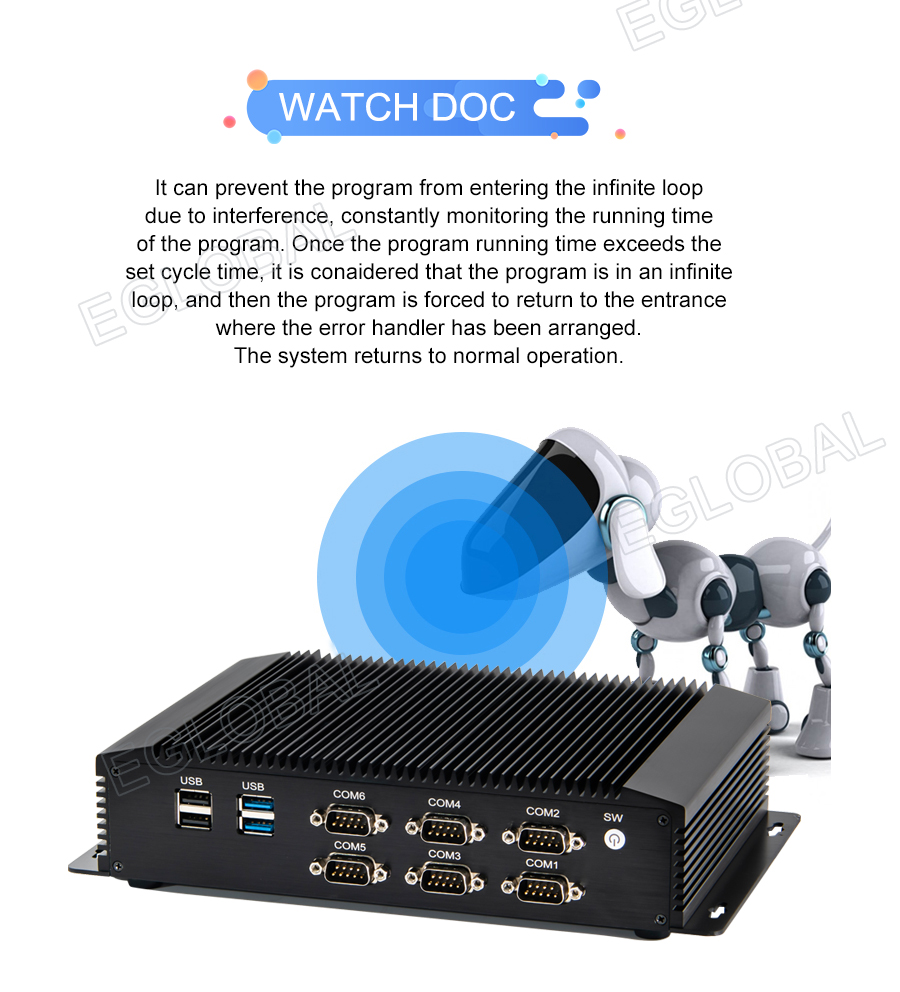

*Support Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN.
*Low consumption TDP only 15W and can be mounted on the wall.
*2 Intel i213 Gigabit RJ45 LAN and 2 COM can change to RS232/422/485 from BIOS.
*One embedded SIM card slot for 4G Module.
*GPIO, LPT, 6COM, HDMI, VGA, USB, MIC, SPK rich ports.
*Full Aluminum Alloy Black color shell for heat dissipation, Exquisite production craft on outside design.
*Fanless system without cooling fan, fit for industrial grade field, work as long as 24 hours.
*Support Watchdog, Auto power on, RTC, PXE boot, Wake-on-LAN.
*Low consumption TDP only 15W and can be mounted on the wall.
Eglobal Fanless Mini PC Intel Core i5 Micro Computer LPT GPIO LVDS 6 COM 8 USB AC WIFI HD VGA Industrial Mini Computer Specifications
|
General |
|
|
CPU |
Onboard Intel Core i5 4200U 1.6GHz Max 2.6GHz(Turbo boost Technology) Dual Cores 4 threads |
|
Core
(FSB) |
100MHz |
|
CPU
Technique |
22nm |
|
L1 Cache |
2 x 32
KB, 8-Way, 64 byte lines |
|
L2 Cache |
2 x 256
KB, 8-Way, 64 byte lines |
|
L3 Cache |
3 MB,
12-Way, 64 byte lines MMX, SSE,
SSE2, SSE3, SSSE3, SSE4.1, SSE4.2, HTT, EM64T, EIST, Turbo Boost |
|
Motherboard
size |
190mm x 150
mm customized size |
|
BOIS |
American
Megatrends Inc. 5.6.5 |
|
Core code |
Intel Haswell |
|
Chipset |
Intel SOC |
|
Memory |
1*
SO-DIMM DDR3L Slot Support
4GB/8GB DDR3L
1333/1600, LPDDR3 1333/1600 |
|
Storage |
1*MSATA SSD:
8G/16G/32G/64G/128G/256G/512G/1TB 1*SATA HDD:
160G/320G/500G/1TB |
|
Operating
System |
Windows
7/Windows 8/Windows 10/Linux |
|
Audio |
ALC662
sound chip, 6-channel Intel Lynx
Point-LP HD Audio Controller |
|
Network |
Onboard
Intel i213 Gigabit Network Connection 10/100/1000Mbps
BaseT LAN |
|
Video |
Intel Haswell- ULT
Integrated Graphics Controller Intel
HD Graphics 4400 |
|
I/O port |
|
|
front
panel ports |
2*USB2.0,
2*USB4.0, 6*COM, 1* Switch |
|
Backside
ports |
1*LPT, 1*MIC,
1*SPK, 1*GPIO, 2*USB3.0, 2*USB2.0, 2*LAN, 1*HDMI, 1*VGA, 1*DC IN(2.5mm), 2*Wi-Fi |
|
COM |
COM1 COM2 can change to RS232/422/485 from BIOS |
|
Internal
ports |
1*M-SATA3.0
port, support 6Gb/s 1*SATA3.0
port, support 6Gb/s 1*mini PCIE-half
port for WiFi module 1*mini PCIE-full
port for 4G module |
|
SIM slot |
Embedded SIM Card slot onboard |
|
Power and Working Environment |
|
|
Input |
DC100-240V
AC/50-60Hz |
|
Output |
DC +12V~+19V,
recommend 12V/5A |
|
Operating
Temperature |
-10/+60
Centigrade (32°F~140°F) |
|
Operating
Humidity |
10%～90% |
|
Storage
Temperature |
-20/+80
Centigrade(-68°F~176°F) |
|
Storage Humidity |
5%～95% (non-condensing) |
|
Relative
Humidity |
10%~90%
(non-condensing) |
|
Product Dimension & Details |
|
|
Size |
230*175*50mm |
|
Net Weight |
1.25KG |
|
Gross
Weight |
2.0KG |
|
Consumption |
15W |
|
Shell |
Black
color aluminum alloy |
|
Package
Content |
Mini PC device,
power adapter, dual WiFi antennas(optional), a HDMI cable( optional), a Screw
Bag |
Eglobal Fanless Mini PC Intel Core i5 Micro Computer LPT GPIO LVDS 6 COM 8 USB AC WIFI HD VGA Industrial Mini Computer
- Brand: EGLOBAL
- Product Code: G5-4200U
- Availability: 200
- $331.00
-
$265.00
- Ex Tax: $265.00
Available Options
