EGLOBAL Ultra Slience Fanless Industrial Mini PC Celeron J1900 Windows Linux Mini PC 2RJ45 Intel Lan 6RS232 / 485 HDMI VGA 8USB Wi-Fi watch 3g / 4G Product Highlights
- 2 Intel i211 Gigabit RJ45 LAN and 2 COM can change to RS232/RS422/RS485 from BIOS.
- One embedded micro SIM card slot for 3G/4G Module.
- Support Watchdog, Auto power on, RTC, PXE boot, State lamp interface, Trigger switch(wafer 1*2).
- Full Aluminum Alloy Silver color shell for heat dissipation, Exquisite production craft on outside design.
- Fanless system without cooling fan, fit for industrial grade field, work as long as 24 hours.
- Low consumption TDP only 10W and can be mounted on the wall.

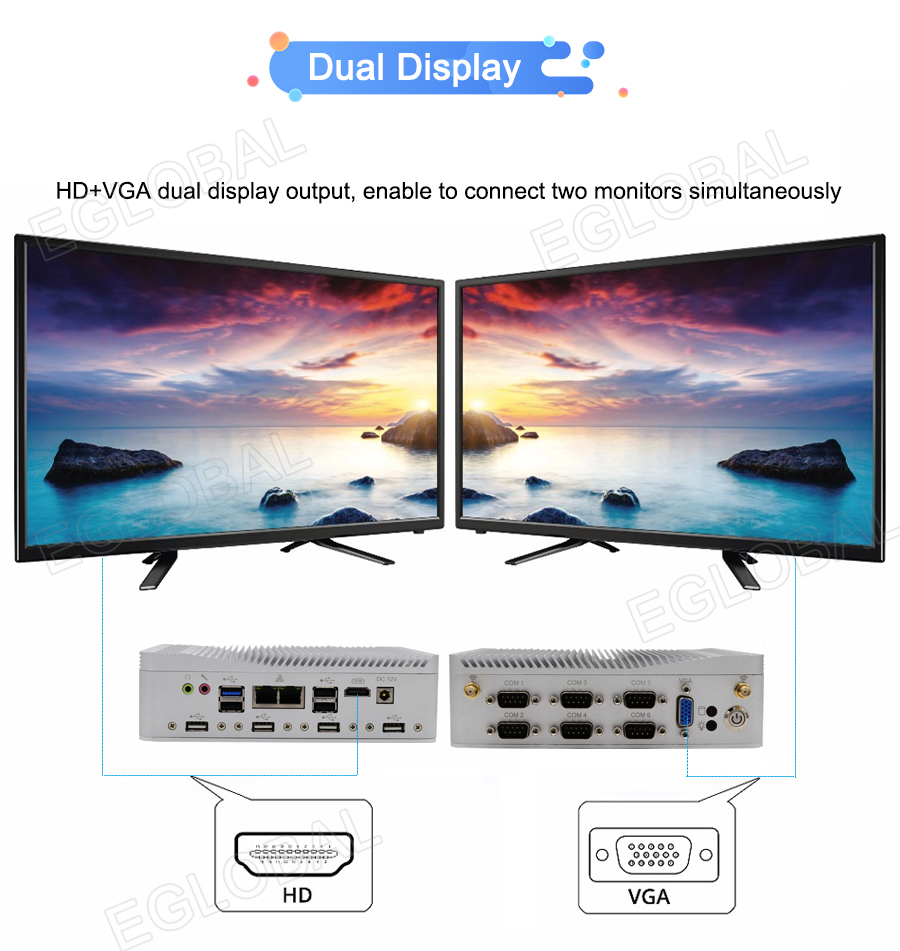

- Support VGA + HDMI 1.4 dual display output synchronously
- One embedded micro SIM card slot for 3G/4G Module.
- Support Watchdog, Auto power on, RTC, PXE boot, State lamp interface, Trigger switch(wafer 1*2).
- Full Aluminum Alloy Silver color shell for heat dissipation, Exquisite production craft on outside design.
- Fanless system without cooling fan, fit for industrial grade field, work as long as 24 hours.
- Low consumption TDP only 10W and can be mounted on the wall.
- Support VGA + HDMI 1.4 dual display output synchronously
EGLOBAL Ultra Slience Fanless Industrial Mini PC Celeron J1900 Windows Linux Mini PC 2RJ45 Intel Lan 6RS232 / 485 HDMI VGA 8USB Wi-Fi watch 3g / 4G Specifications
|
General |
|
|
CPU |
Onboard
Intel J1900 2.0GHz Quad Core Four Thread Max 2.41GHz(Turbo boost Technology) |
|
Core
(FSB) |
100MHz |
|
CPU
Technique |
22nm |
|
L3
Cache |
2 MB, CPU
integrated |
|
Motherboard |
Intel
CRESCENTBAY ( Lynx Point-LP ) |
|
BOIS |
AMI
BIOS, ACPI supported |
|
Chipset |
Intel
BTY SOC |
|
Memory |
Onboard
4GB DDR3L RAM |
|
Storage |
1*MSATA
SSD: 8G/16G/32G/64G/128G/256G/512G/1TB 1*SATA
HDD: 160G/320G/500G/1TB |
|
Operating
System |
Windows
7/Windows 8/Windows 10/Linux |
|
Audio |
ALC662
HD Audio, 6 channel sound |
|
Network |
Onboard
Intel i211 Gigabit Network Connection 10/100Mbps/1000Mbps
BaseT LAN |
|
Video |
Intel Haswell-
ULT Integrated Graphics Controller Intel
HD Graphics |
|
I/O port |
|
|
front
panel ports |
1*
Switch, 2*LED(red for power, green for hard disk), 1*VGA, 6* COM, 2*WiFi |
|
Backside
ports |
1*MIC,
1*SPK, 1*USB3.0, 7*USB2.0, 2*RJ45 LAN, 1*HDMI, 1*DC IN |
|
COM |
COM5,
COM6 can change to RS232/422/485 from BIOS |
|
Internal
ports |
1*M-SATA3.0
port, support 6Gb/s 1*SATA3.0
port, support 6Gb/s 1*Mini
PCIE-half port for Wi-Fi module 1*Mini
PCIE-full port for 3G/4G module |
|
SIM
slot |
Micro SIM |
|
Power and Working Environment |
|
|
Input |
DC100-240V
AC/50-60Hz |
|
Output |
DC
12V/5A |
|
Operating
Temperature |
0/+60
Centigrade(22°F~130°F) |
|
Storage
Temperature |
-20/+80
Centigrade (-68°F~176°F) |
|
Relative
Humidity |
20%~85%
(non-condensing) |
|
Product Dimension & Details |
|
|
Size |
180*120*52.5mm |
|
Net Weight |
0.5KG |
|
Gross
Weight |
1.5KG(incl.
package accessories) |
|
Consumption |
10W |
|
Shell |
Black/Silver
color aluminum alloy(any customized color for bulk order) |
|
Package Accessories
|
Power adapter,
dual WiFi antennas(optional), a HDMI cable( optional), a Screw Bag |
EGLOBAL Ultra Slience Fanless Industrial Mini PC Celeron J1900 Windows Linux Mini PC 2RJ45 Intel Lan 6RS232 / 485 HDMI VGA 8USB Wi-Fi watch 3g / 4G
- Brand: EGLOBAL
- Product Code: G3-J1900
- Availability: 400
-
$220.00
- Ex Tax: $220.00
