Month: October 2019

How to install the 1037U system using the USB driver

Step 1: Make a bootable flash usb driver as the following pictures

Install the software “make bootable USB software.exe ” on your computer, then open it to make the bootable flash usb driver.

The important step: Copy the xp.gho to the usb dirver

Step 2: Use your UBS driver into the PE system

Put your USB driver on your mini pc that you want to re-install the system, then turn on your mini pc and press “F11” then you will see the picture:

Select your USB Driver like “SinDisk Curzer Edge 1.27” then press “Enter”

Re-start your computer after above steps finished.

Introduction – Golden OEM & ODM Mini PC Manufacturer “EGLOBAL” in Shenzhen City, China

Eglobal Technology Co Ltd(HK Company), established in 2009 in Hong Kong, is a high-tech company in line with latest computer technical, is also a professional manufacturer and exporter that is concerned with the design, development and production of Mini PCs. At the beginning of our company, we devote into thin client pc station, in 2011 we expand our business field into Mini PCs development and supplying, especially fanless system without cooling fan. We are located in Shenzhen City, Guangdong Province, with high-speed developed economy, preferential policies local government support and convenient transportation access. And with our deeply-accumulated experience and knowledge of oversea marketing sales team in Eglobal international trade department and 7 technical support team with 10 years computer support experience we wish to become one of your best supplier.


We create own brand “EGLOBAL” with high quality, competitive price, excellent sales team and nice after-sales support, quickly get big worldwide market, market includes Latin America, Asia, Africa and some European countries. In 2016, EGLOBAL as Gold Sellers is Top-Quality Brands on AliExpress, our Sales ranked eighth in Computer & Office catalog, second only to Samsung. Since now a monthly sales reached USD200000 by the official store here. EGLOBAL on AliExpress: https://eglobal.aliexpress.com/store/217312

Shenzhen Eglobal Import&Export CO., Limited(CN Company), established in 2012, cooperated with Alibaba to expand our market all over the world. EGLOBAL on Alibaba: http://eglobal.en.alibaba.com/. As our company’s development, we shall expand our sales team then open a new Alibaba in 2017: https://eglobalminipc.en.alibaba.com/ .

In order to make us become stronger, we provide Drop Shipping service all over the world branded EGLOBAL and we also supply wholesale OEM & ODM service, including designing and printing customer outside color package, build in customer logo into our software along with the hardware, produce customer designed product shape and so on.

Details about us please kindly copy the video on YouTube: https://youtu.be/vvoKfOfgzz8 .

Welcome to subscribe to ” Eglobal Technology Co., Limited ” on YouTube or Facebook.

Video – How to assemble EGLOBAL Fanless Mini PC M3 serial

Usually we assemble a complete Mini PC well for our customers, but a few customers ask us to send bulk packaging to them in order to avoid high customs tax at local. If you don’t know how to assemble welcome to copy the demonstration video link of EGLOBAL Mini PC M3 serial for your reference.

Step 1: https://youtu.be/FxlMGwR17jE

Apply a few thermal grease between heat sink and motherboard is an important step. Fix the motherboard on the EGLOBAL Mini PC case by screws.

Step 2: https://youtu.be/3nNzaCkLKzQ

Fix the motherboard on the EGLOBAL Mini PC case by screws and install the case frame well.

Step 3: https://youtu.be/tyf12_XIFg8

Install the WiFi RF cables, you shall use the WiFi washer and WiFi screws to fix the two external WiFi antennas.

Step 4: https://youtu.be/PO3F9W68klU

Install the WiFi module, RAM and Storage on the correct slot of this motherboard.

New Arrival Mini PC Computers V310 Launched By Eglobal MiniPC Factory VS Intel NUC PC

New arrival V310 is an affordable series of Mini PCs launched by Eglobal MiniPC factory. Smart tiny case 137x150x50mm hold by a hand, adopting 8th Gen Intel processor onboard, it’s possible to configure quite the capable computing machine without requiring some desk or floor space for a bulky case. The new Mini PC has dual gigabit RJ45 LANs, separately using Intel chip and Realtek chip. 2xSODIMM DDR4 memory slot up to 32GB more fast speed and M.2 NGFF/NVME SSD slot improve work efficiency and give you a smooth experience. V310 Eglobal Mini PC with rich interfaces: USB, Type-C, SD Card, DP, HDMI, etc. to connect with more devices. Widespread applications such as office, school, bank, supermarket, service center, hospital, POS, HTPC, CCTV, etc. The only issue with the Eglobal Mini PCs is the choice available. There are many different configurations you can go for, which can be rather daunting to anyone who’s new to the series of hardware.

I’m going to run you through what you should consider, as well as a few examples to get you started.

Eglobal MiniPC factory offers various options when it comes to the Mini PCs. Multiple processors come from Intel company, including Celeron and the trusty Core i7. The question you need to answer before looking at a Eglobal Mini PC is what you plan to do with it. Should you require a capable machine that can not only handle processing of media and daily computing tasks but perhaps a little gaming on the side and consuming some 4K content, you’ll get by with the more affordable options with a Celeron processor, recommending Eglobal Mini PC M series we introduced before, like M3-N2955 with Intel Celeron 2955u CPU onboard, M3-N3150L with Intel Celeron N3150 CPU onboard, or M9-J1900 with Intel Celeron J1900 CPU onboard.

Moving up into Core i3, i5, and i7 territory is where the Eglobal Mini PCs gets really interesting. You can pick up the newest Mini PC V310, for example, which comes packing an Intel Core i7-8550U processor clocked at 4.0GHz, 16GB of DDR4 RAM, and a 512GB NVMe SSD with Windows 10 pre-installed. Considering the form factor, it’s an incredibly powerful machine and would gladly handle even more demanding applications.

Another thing to note with the different SKUs is the cheaper you go the more likely it is you’ll need to pick up RAM and an SSD yourself since these will not be covered by a sub $300 price.

Comparing different SKUs between Eglobal Mini PCs VS Intel NUC

I’ve selected a few options from the vast collection of Eglobal Mini PCs and Intel NUC offerings to show some different configurations and price points. Price of Eglobal Mini PCs include free shipping all over the world, Eglobal MiniPC factory also provide drop-shipping service for free.

CategoryProcessorRAMStoragePrice
M3-N3150LIntel Celeron N3150 2.08GHzN/AN/A$108.7
M9-J1900Intel Celeron J1900 2.41GHzN/AN/A$139
V310-8250UIntel Core i5-8250U 3.4GHz8GB
DDR4		256GB
NVMe
SSD		$337.27
V310-8550UIntel Core i7-8550U 4.0GHz16GB
DDR4		512GB
NVMe
SSD		$478.14
Intel NUC 5CPYHIntel Celeron N3050 1.6GHzN/AN/A$126
Intel NUC 7i5BNKPIntel Core i5-7260U 2.2GHz8GB
DDR4		 256GB
NVMe
SSD 		$639
Intel NUC 7i7BNKQIntel Core i7-7567U 3.5GHz16GB
DDR4		 512GB
NVMe
SSD 		$899

If you’re new to the whole world of Mini PCs or do not require anything powerful, the Intel Celeron is a capable processor. Throw in 8GB of RAM and an SSD and you’ll be ready to go. The Core i5 and Core i7 Mini PCs are in a different league. While they may not sport desktop-class Intel processors (only laptop ones here, I’m afraid), the performance available is superb.

Our four selections are $337.27, $478.14, $639 and $899, respectively. These four SKUs come with 8GB and 16GB of RAM and more than 256GB of internal storage, making it possible to simply plug them in to get going. Eglobal Mini PCs are with high cost performance, contain advanced internals that transforms the small box into a workhorse and makes it possible to enjoy high-quality content and power through work all-day long, but Intel NUC PCs are expensive up to double than Eglobal Mini PCs.

You will recognize M.2 SSD: why some M.2 SSD have two notches?

Before MSATA SSD and SATA HDD/SSD are often used for traditional desktop computers or nowadays smart mini pc. Since technology is developing gradually, more Eglobal Barebone Mini PCs with M.2 SSD slot are coming out. You will learn more about M.2 SSD after reading the article and know how to match the proper M.2 SSD on our Eglobal Barebone Mini PCs.

As we know M.2 is a new SSD slot, but not all M.2 slot can install different kinds of SSDs. Why some M.2 SSDs have two notches, some have one notch? Let us know more about that.

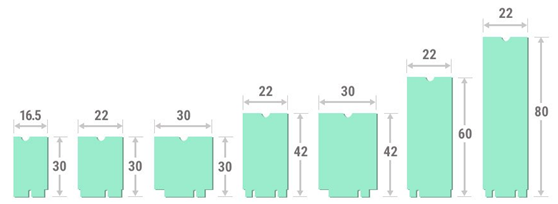

M.2 2242 and M.2 2280 are usually used for most of M.2 modules. In addition, M.2 also provides a variety of standard specifications. A basic principle is that the small size can be installed in a large volume slot, and the M.2 2242 is more flexible than the M.2 2280.

Not all M.2 slots are used for SSDs, for example the M.2 E Key slot in the following picture is reserved for wireless module. You will find the location of E key is different from the B Key on a common SSD if you observe carefully. The M.2 slot is the location of the notch to express the type of M.2 device that it can support.

The common M.2 SSDs have two types: one notch(M Key) and two notches(B Key). From top to bottom, Toshiba RD400 NVME SSD, Toshiba Q200 240G M.2 SSD and Toshiba RC100 NVME SSD, are respectively corresponding to PCIE NVME, SATA AHCI and PCIE NVME interfaces. That is to say, the two notches of the M.2 SSD may be either the NVME protocol or the SATA protocol, and one notch(M Key) is usually possible with the NVME protocol only.

Corresponding to the SSD, there are some differences in the position of the bayonet on the M.2 slot. The figure below compares the two most common M.2 slots: Socket 2 and Socket 3. Socket 2 supports PCIE x2 or SATA, while Socket 3 supports PCIE x4 or SATA.

The conclusion is clear now. Due to the limitation of the slot, the SSDs with two notches(B+M Key) can be installed in the M.2 slot of Socket 2 or Socket 3, and the SSDs with one notch ( M Key) can be installed into the Socket 3 only.

The SSDs with two notches can only support PCIE x2, which will limit the continuous read and write bandwidth, but the 4K random read and write performance that determines the daily performance is not affected.

Although the PCIEx2 has limited performance, there are also excellent products. For example, Toshiba’s mini NVME SSD – RC100 uses the B+M Key, while maintaining excellent compatibility, the 4K random read speed reaches 58.55MB/s, which is consistent with the high-end flagship NVME SSD.

Benefiting from the dual bayonet features of the B+M Key, the RC100 can even be installed in the M.2 2242 slot reserved for the 4GB wireless module(B Key) and works normally. Players already use them in the Thinkpad T470p and other models. This particular usage was verified.

In summary, starting from the ultimate performance, M.2 NVME SSDs with a notch(M Key) is the strongest(not 100% certain, depending on the main control specification); from the compatibility, M. 2 SATA SSDs with two notches are better (such as Q200 M.2); for both performance and compatibility, M.2 NVME SSDs with two notches(such as RC100) are ideal.
